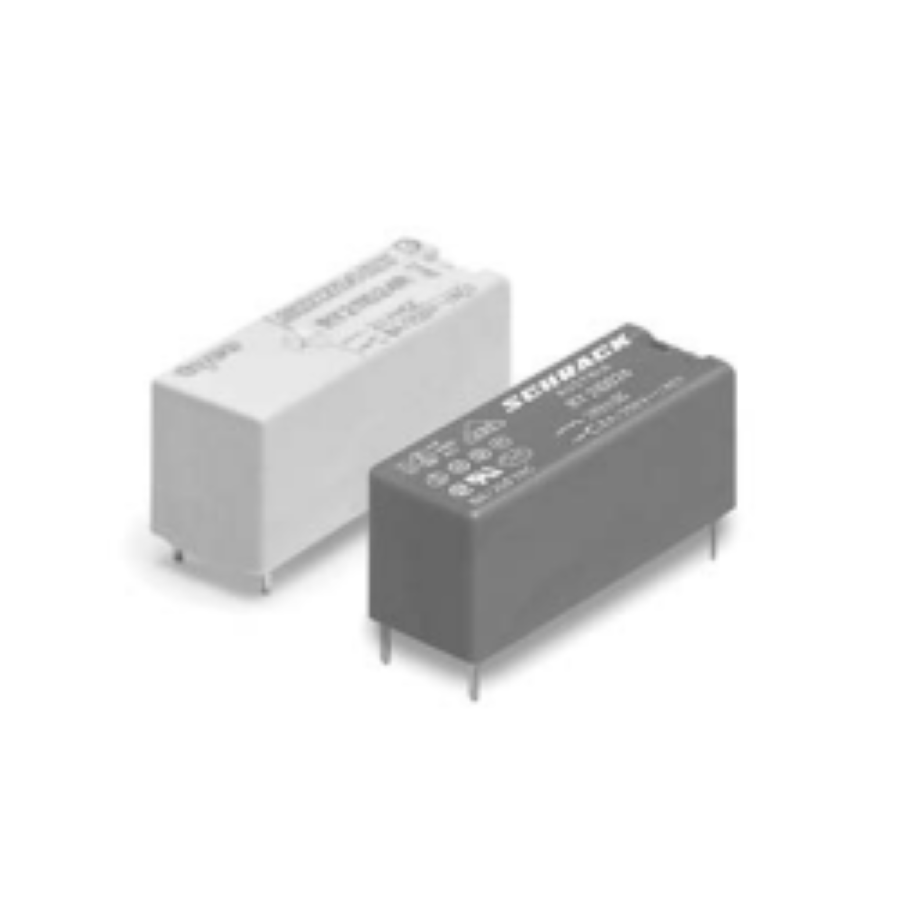

1393225-7
Manufacturer:
TE Connectivity
Mfr.Part #:
1393225-7
Datasheet:
Description:
Power Relays Through Hole 44.64 mA 112 Ω 5 V General Purpose
| Parameter | Value |
|---|---|
| Length | 28.5 mm |
| Width | 10.1 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 400 V |
| Number of Pins | 5 |
| Packaging | Tube |
| Depth | 10.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Cadmium, Silver |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 400 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 44.64 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 112 Ω |
| Relay Type | General Purpose |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Contact Current Rating | 8 A |
| power consumption | 223 mW |
| Termination Style | PC Pin |
| Switching Voltage | 400 VAC |
| Coil Voltage (AC) | 5 V |
| Must Operate Voltage | 12.6 V |
| Must Release Voltage | 1.8 V |
